Smart Desk Interm 2LAN

Medium Business SMB Network Firewall Appliance

About this item:

  • Medium business can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server with optional packages to deliver high performance.
  • WAN/LAN Configuration: LAN2 to LAN5 can be configured as WAN or LAN functions, to achieve different broadband overlay.
  • Dual Core CPU: Mini-ITX motherboard with Intel Celeron N2830 processor which uses DDR3L RAM and mSATA SSD sockets with flexible memory capacity to satisfy computing needs.
  • Fanless Passive Cooling: All aluminium body of the PC works as a radiator, offering zero noise and lower heat generation with less power consumption which is eco-friendly and more economical.

Technical Specs

Processor Available in Intel Celeron N2830 (2 core 2 threads, 1M Cache, 2.16 GHz,
Max Memory Size Up to 8GB DDR3
Wifi Connectivity With dual antennas, 300M,802.11.b/g/n (Optional)
OS Support 7/8/10/ubuntu/LINUX/CENTOS / LEDE /ESXI6.7 etc.
Notice: we pre-install Win7/8/10 OS for testing only,
StorageSSD:1*Full Height mSATA socket,16GB/30GB/60GB/120GB/240GB/500GB mSATA HDD:Support SATA2.5" HDD

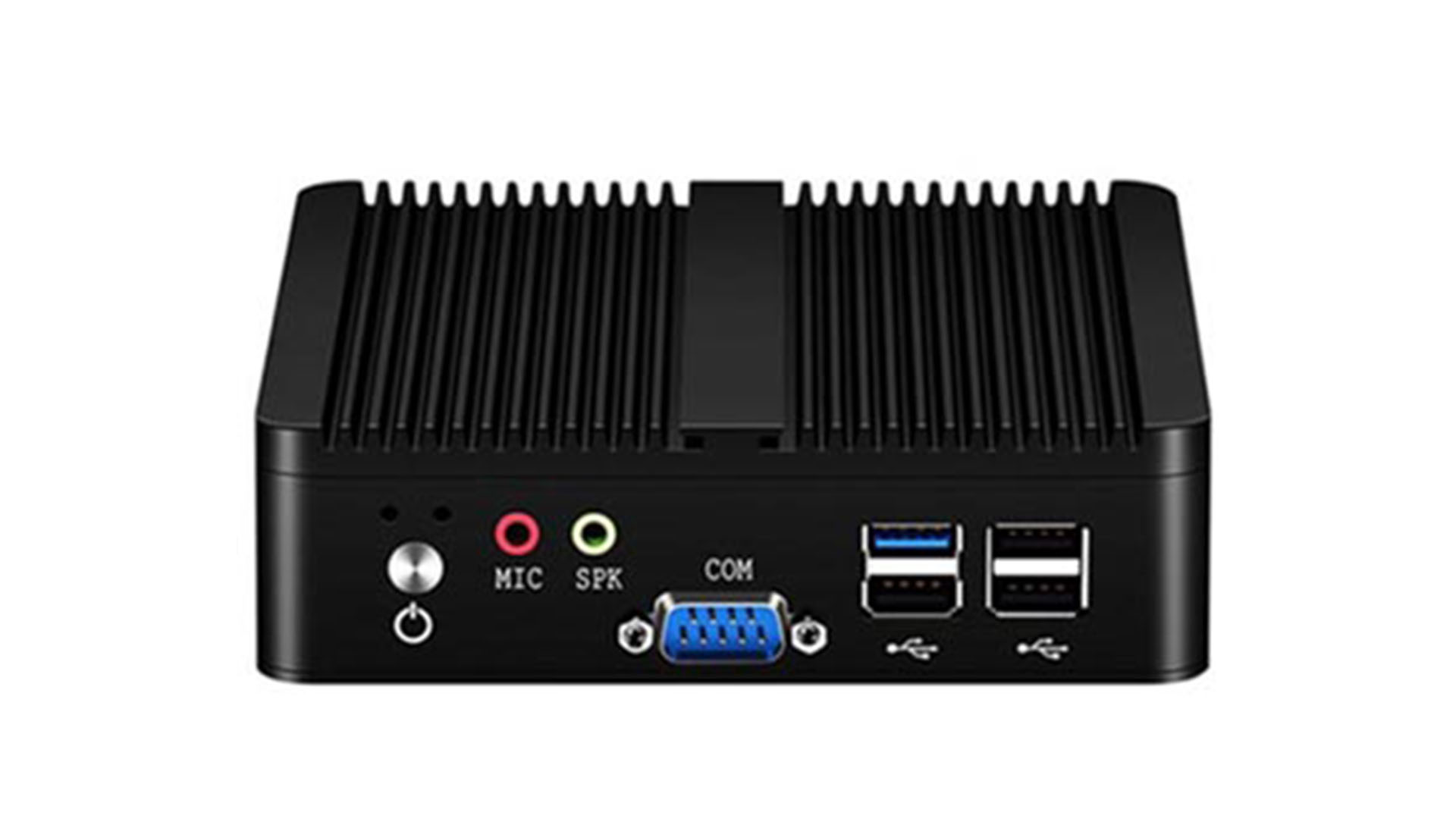

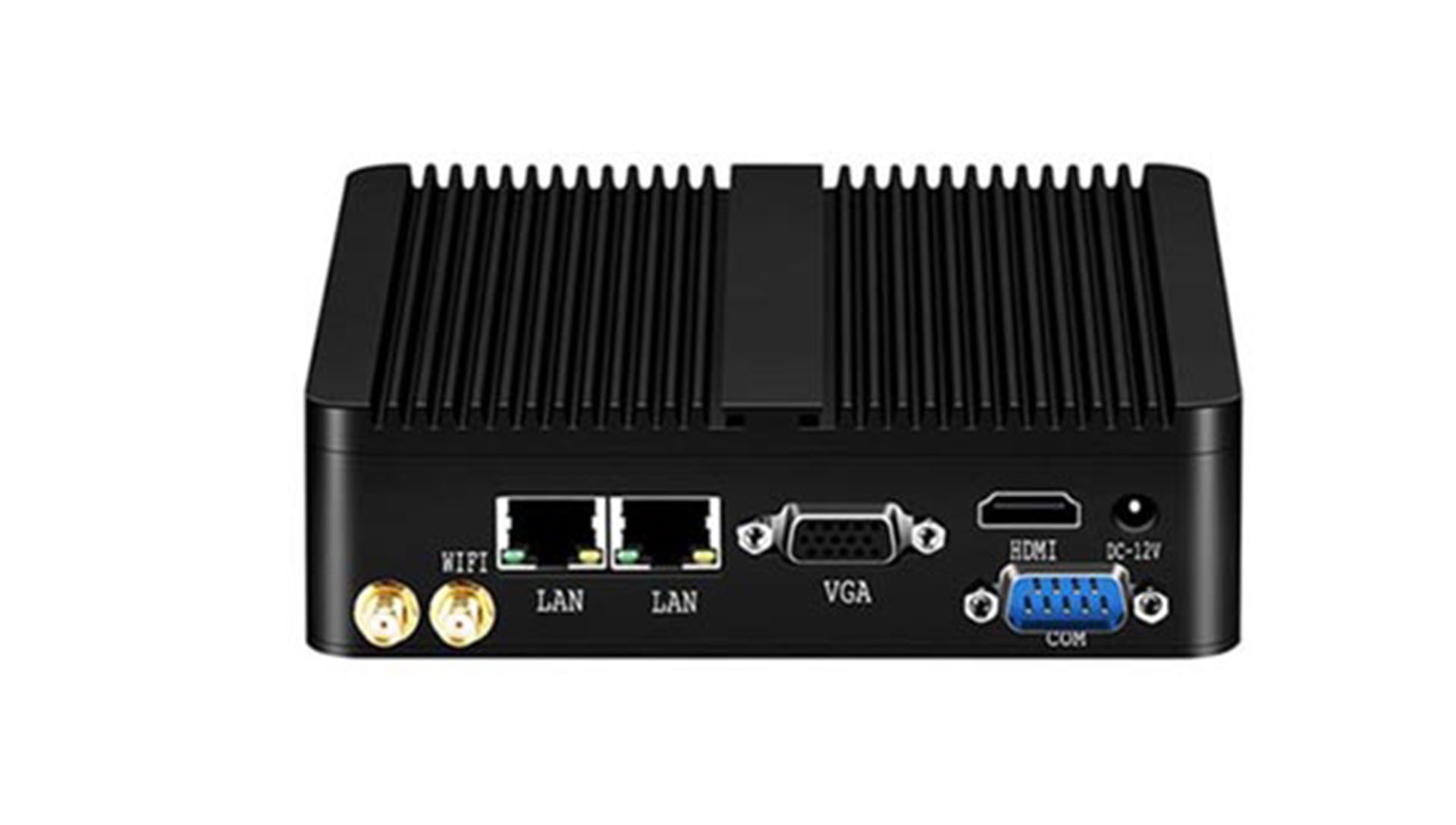

I/O 1 x USB 3.0
1 x USB 2.0
1 x VGA
1 x HDMI
2 x Rj45
2 x RS232 Com port
Audio Adopting Realtek ALC662 Chip, Supports dual channels, stereo, and Line out
Mini-PCIe 1* Half Height Mini PCIE
Fan Fanless Passive cooling with Heat Sink Aluminum Block
Power Adapter 1DC 12V 5A/60W(AC TO DC,100~240V
Power Type DC-IN 5.5*2.5
Case Material Aluminum Alloy
Device Size 136x136x39mm
Weight 1.5Kg

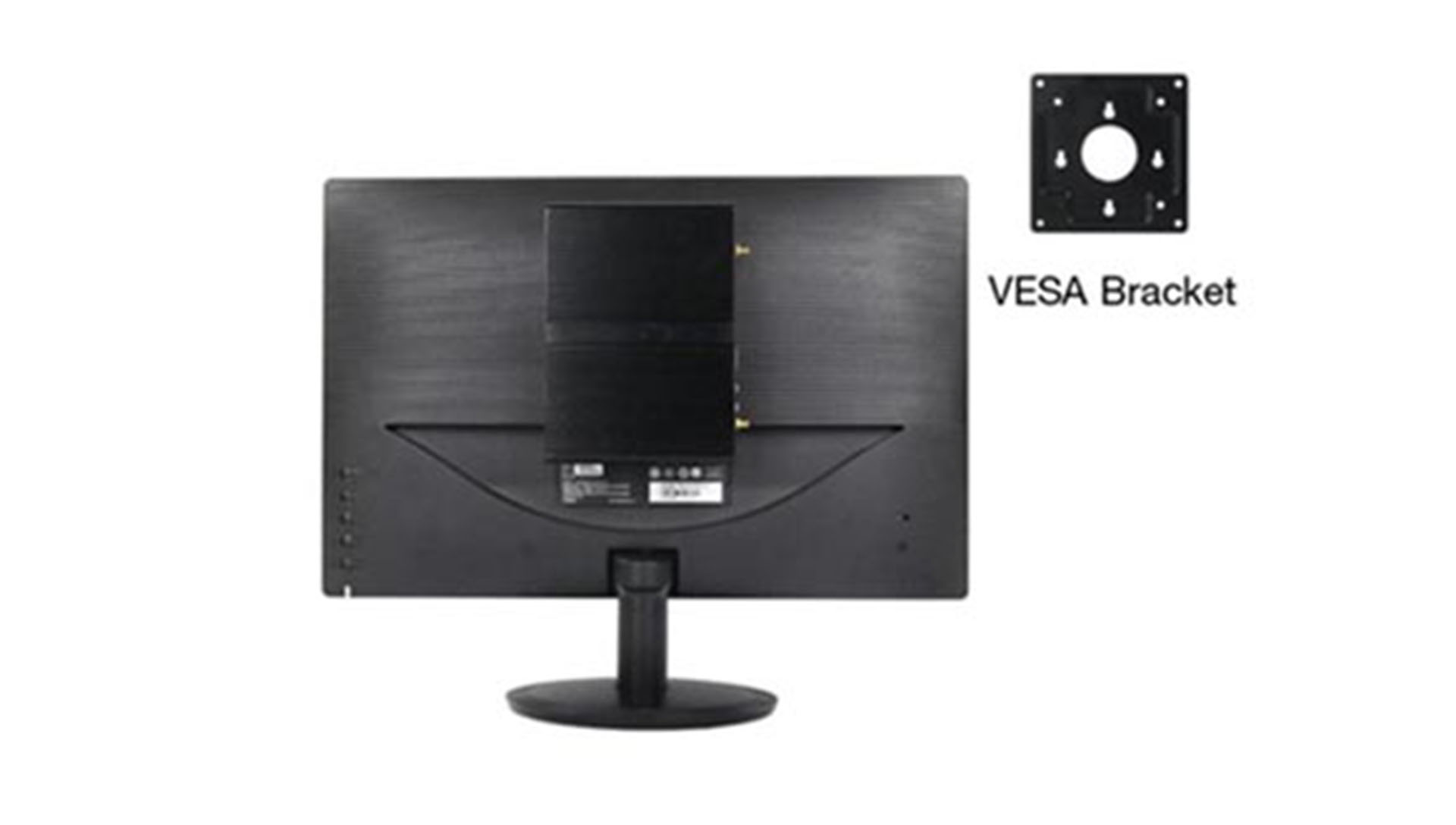

Installation VESA/Wall/Desktop
Operating Temperature -20 C~ 65 C
Storage Temperature 15- 35 C
Operating Humidity 5%-95% Relative humidity, no condensation
Warranty 1 Year Warranty (additional warranty can be purchased separately), quality, performance and service.
In the box Mini PC, Power Supply and VESA Mount Bracket

ABOUT GREEN GATE INFOTECH

Thin client and zero client computing offers the cost-savings advantages of server-based computing without sacrificing user experience. It is a great way for small and medium businesses, schools, institutions, hospitals to leverage server power without having to purchase expensive hardware.

Green Gate focuses on affordable custom secure solutions to help companies and agencies transition and migrate to a hybrid or complete virtual desktop solution using a central data center.
