Smart Desk Interm Plus 4LAN

SMALL IN SIZE BUT POWERFUL IN PERFORMANCE

About this item:

  • Intel processor - Pre-installed with Windows 10 Pro 32bit and also support windows7/8/linux/Ubuntu/CENTOS/LEDE/ESXI 6.7 etc. Intel N2940 quad core Processor with Intel HD Graphics, Support auto power on, wake on lan and PXE boot

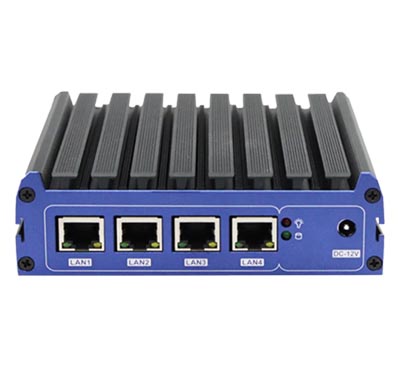

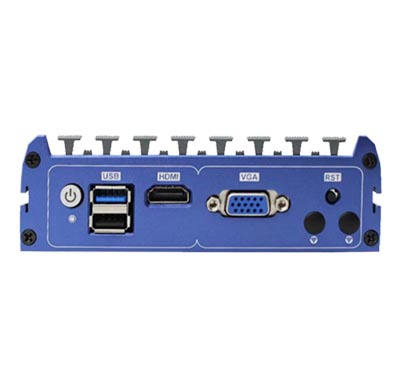

  • Rich I/O Ports – This mini pc support 2*Gigabit Ethernet with stable and high speed. Good compatibility for soft routing, firewall and other network applications. I/O Interface: 1*HDMI, 1*VGA, 1*USB3.0, 3*USB2.0, 4*RJ45 LAN, 1*DC IN, 1*MIC, 1*SPK.

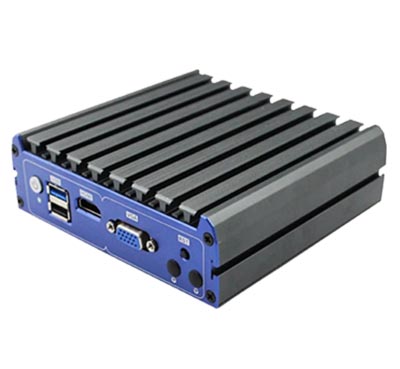

  • Portable and Silent - Equipped with a mounting bracket can be easily fixed to the back of the monitor and which is space saving. It uses fan less passive cooling design, low power consumption to save energy and zero noise.

Technical Specs

Processor Intel Bay Trail Celeron™ Processor N2940, FCBGA1170 Quad-core,4 threads, 1.83~2.25 GHz frequency
Max Memory Size Up to 8GB DDR3
Wifi Connectivity 802.11 b/g/n, 2.4/5.8 Dual Band Ghz (Optional)
Ethernet 10/100/1000 Mbps
Storage1 x 2.5 HDD (Upto 4 TB) and 1 x MSATA (Upto 1 TB)
I/O 1 x USB 3.0
1 x USB 2.0
1 x VGA
1 x HDMI
4 x Rj45 (Gigabit LAN Port )
1 x Power Button
1 x DC in
1 x 3.5mm Microphone Jack
1 x 3.5mm Speaker Jack
1 x Power Button
Audio Adopting Realtek ALC662 Chip, Supports dual channels, stereo, and Line out
Case Material Aluminum Alloy
Cooling system Cooling fan
Device Size 135x135x35mm
Weight 0.6 Kg
Power 12V/5A
Storage Temperature 15- 35 C
Operating Humidity 5%-95% Relative humidity, no condensation
Warranty 1 Year Warranty (additional warranty can be purchased separately for upto 5 Years),
6 Months Adaptor Warranty.
In the box Mini PC, Power Supply and VESA Mount Bracket

ABOUT GREEN GATE INFOTECH

Thin client and zero client computing offers the cost-savings advantages of server-based computing without sacrificing user experience. It is a great way for small and medium businesses, schools, institutions, hospitals to leverage server power without having to purchase expensive hardware.

Green Gate focuses on affordable custom secure solutions to help companies and agencies transition and migrate to a hybrid or complete virtual desktop solution using a central data center.
